whitelist access connection in ruijie as wg or openvpn client

I am trying to route certain web connection using wireguard, the web only can be access when the devices using vpn, so, when i try input and use it all connection are down, is there any solutions to this?

Hello,

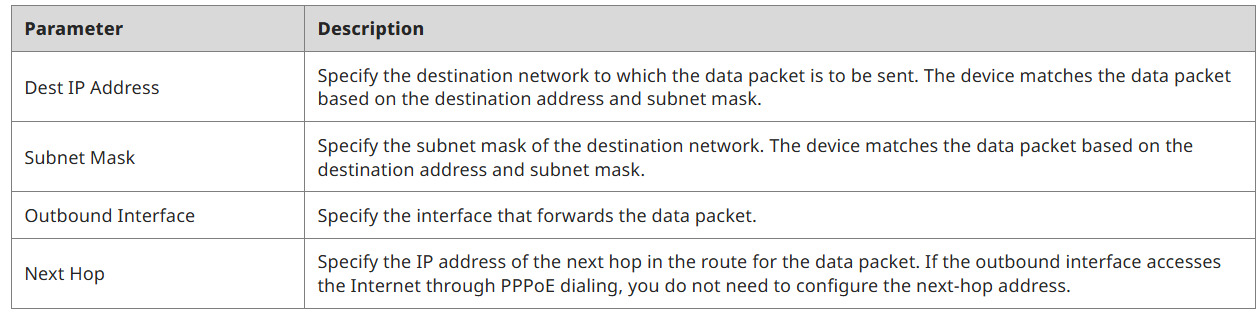

Can you tell us your device model? Can you confirm how are you configuring the route? are the following parameters configured ok?


Or are you configuring using URL routing?

If so, Please have in mind the following advice:

Please let us know, Best regards.

GTAC-Jason replied at 2025-12-18 01:12
Hello,
Can you tell us your device model? Can you confirm how are you configuring the route? are th ...

I am using  RG-EG209GS with ReyeeOS 2.388

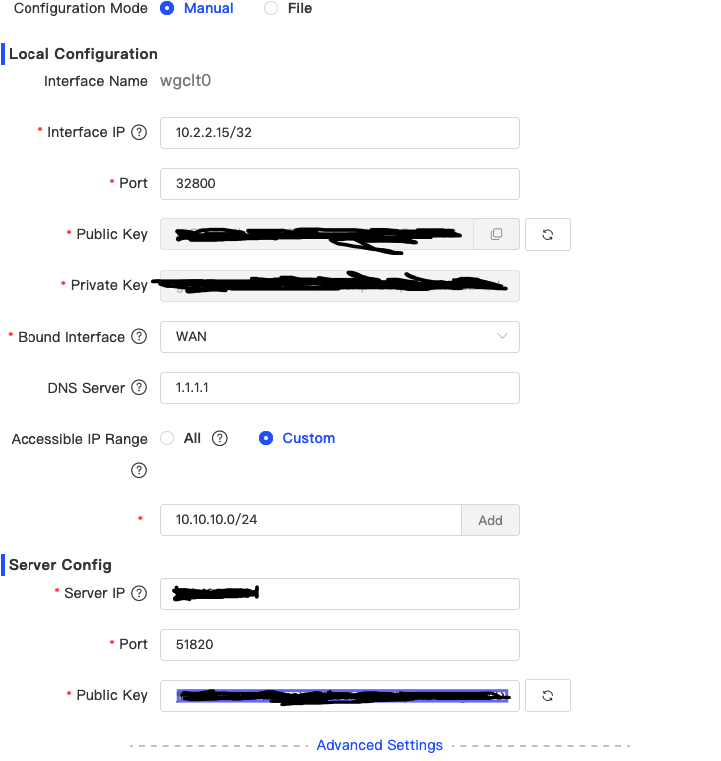

This my setup for wireguard client at the wgvpn menu.

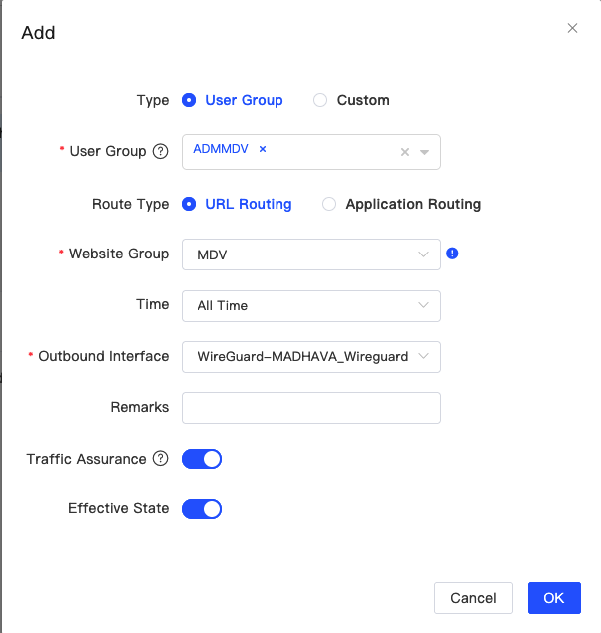

configuring using URL/APP routing




result when I try to traceroute its still using a non vpn network

User 38978 replied at 2025-12-18 08:54
I am using  RG-EG209GS with ReyeeOS 2.388

This my setup for wireguard client at the wgvpn menu.

Can you provide us with your network topology in this situation so that we can better understand how you built it?
You can also come to Rita for real-time communication with us to ensure the accuracy of the steps.

RITA Robot/Live Chat:

www.ruijienetworks.com/rita

GTAC-Colin replied at 2025-12-18 09:08
Can you provide us with your network topology in this situation so that we can better understand h ...

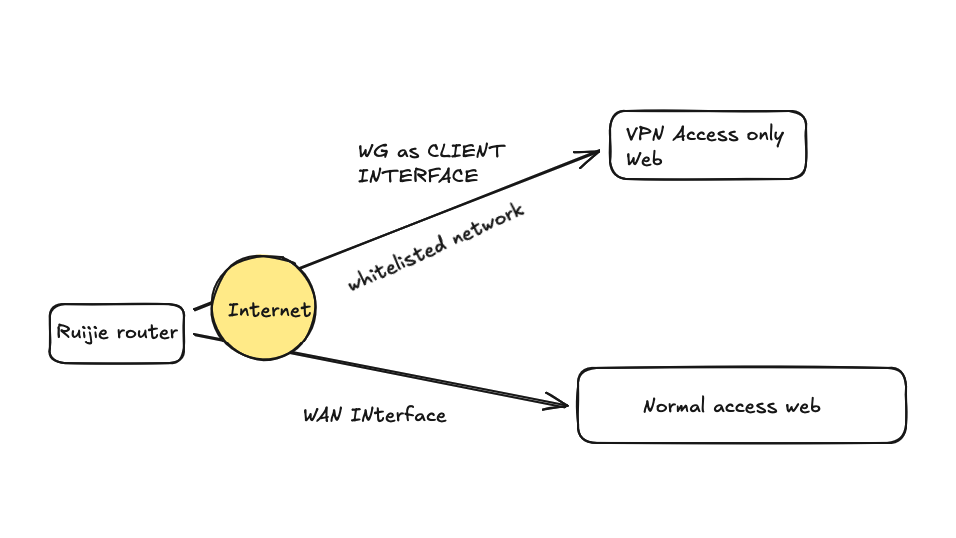

This is the planned network to be

User 38978 replied at 2025-12-19 00:16
This is the planned network to be

Dear Customer,
Are you hoping that some users can access your internal network segment via OpenVPN or WireGuard VPN? Is the RG-EG209GS acting as the client? Can the VPN connection be established successfully? For this issue, we may need to further check your project link. Could you please contact us via live-chat( www.ruijienetworks.com/rita).  Our dedicated engineers are readily availableto resolve your issues promptly.


Best Regards,

GTAC-Shirley replied at 2025-12-19 00:56
Dear Customer,
Are you hoping that some users can access your internal network segment via OpenVPN ...

so this is for office usage since we want whitelisted on from our HQ to our web app server mainly we use vpn for that

User 38978 replied at 2025-12-19 01:36
so this is for office usage since we want whitelisted on from our HQ to our web app server mainly  ...

Dear Customer,
You can create a VPN account, and only users of that account can use the VPN.For this issue, we may need to further check your project link. Could you please contact us via live-chat (www.ruijienetworks.com/rita)? Our dedicated engineers are readily available to resolve your issues promptly.

Best Regards,
