Reyee Anylink High Availability

Hi,
Is it possible to setup High Availability for EG devices  and use it in Anylink  SDWAN ?
In our case, we tried to minimize anylink downtime caused by hardware failure in HQ. We welcome other possible to closest solution to our problem.

Hi sir,

SDWAN supports link keep-alive optimization (passive detection) and link bundling functions. Does this meet your requirements?


Best regards,
Steve

Steve replied at 2026-1-9 13:42
Hi sir,

SDWAN supports link keep-alive optimization (passive detection) and link bundling functions ...

Hi,
how link bundling helps with device failure ?
Let says we have 10 branches and 1 HQ. Our application is in HQ. Now, if EG device in HQ down (ie. power supply failure, or burn capacitor), all 10 branches lost connection to our applications.

noanzzz replied at 2026-1-9 14:25
Hi,
how link bundling helps with device failure ?
Let says we have 10 branches and 1 HQ. Our appli ...

Hi,
Ruijie Cloud Document Center
If you want each branch to continue accessing each other even when HQ loses power, you can try using Mesh networking. You can refer to this document.
Best regards,

Colin

GTAC-Colin replied at 2026-1-9 14:45
Hi,
Ruijie Cloud Document Center
If you want each branch to continue accessing each other even whe ...

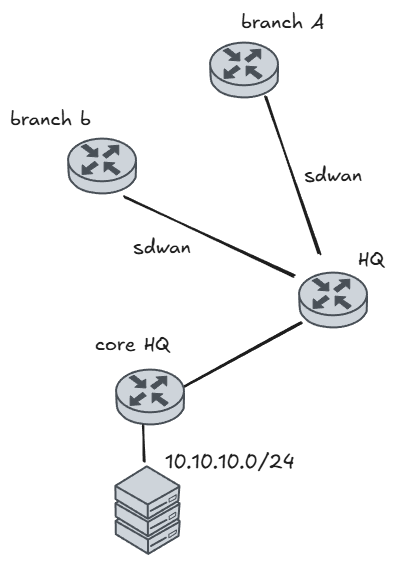

- branch A need to access server in subnet 10.10.10.0/24
- branch B need to access server in subnet 10.10.10.0/24
- in ruijie HQ we define 10.10.10.0/24 in their subnet
- if ruijie HQ router failed -> all access to 10.10.10.0/24 failed.

noanzzz replied at 2026-1-12 11:49
- branch A need to access server in subnet 10.10.10.0/24
- branch B need to access server in sub ...

Hi,
In your deployment situation, when Ruijie HQ is disconnected, your branches will not be able to access Core HQ because this is not a full ring Mesh network. You can follow the document I sent you above to build a Mesh ring network, or you can use IPsec to set up a point-to-point VPN
