Dual WAN setup

How can I configure the RG-WALL 1600-Z3200-S for dual WAN connection?
(+ load balance, backup etc.) also Is there any tutorial about this on Ruijie knowledge base?

Dear

sir,you can also refer to this link to configure load balance on the firewall:

Ruijie RG-WALL 1600-Z-S Series Cloud-Managed Firewalls MLLB Typical Configuration Examples (V1.0) - Ruijie Networks

best regards

Scenty

GTAC-Scenty replied at 2026-4-5 09:49

Dear

sir,you can also refer to this link to configure load balance on the firewall:
[/h3 ...

MLLB is the second step for me, for now I need to know simple way to setup multiple wan connections on 1600-Z-S
Is there any sources or docs for simple multi wan setup upon firewall GUI?
Thank you

Levent HIZBUL replied at 2026-4-5 17:31
MLLB is the second step for me, for now I need to know simple way to setup multiple wan connection ...

Hello,

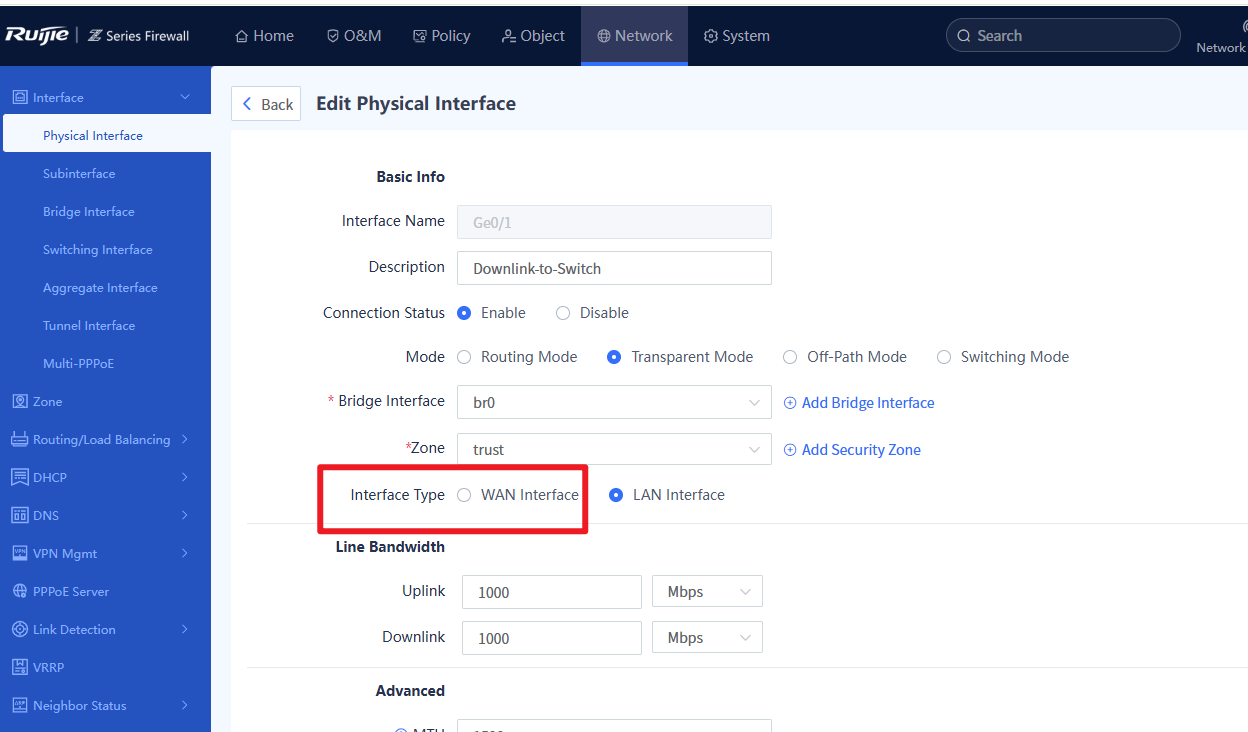

If you want to switch a port from LAN mode to WAN mode, you can follow these screenshots:





Best regards,

Micca

GTAC-Micca replied at 2026-4-5 17:52
Hello,
If you want to switch a port from LAN mode to WAN mode, you can follow these screenshots:

I already know this settings, so to clarify how can we do;
1- specific wan to lan network? (optional but it's good to know)
2- two seperate wan connection merged to forward one lan network?
For example: We have two seperate Gbps fiber wan connection, I connect these two wan cables to
firewall's ethernet ports, set them up as wan then we need to configure these two wan merged (1+1Gbps load balance)
and forward to specific lan port subnet.
eg. Ge0/1 + Ge0/2 = 1 + 1Gbps (2Gbps) balanced WAN --> Ge0/3 (192.169.1.0/24)

Levent HIZBUL replied at 2026-4-5 19:19
I already know this settings, so to clarify how can we do;
1- specific wan to lan network? (option ...

Dear customer,

You can create intelligent routing to meet your needs. Refer to Section 4.5.1 of this document.
https://www.ruijie.com/en-global/support/documents/slide_rg-wall-1600-z-s-series-cloud-managed-firewalls-mllb-typical/#_Toc166832316


Best regards
